Filter Material: SS304 or SS316
Filter Surface Treatment: sandblasting or polishing.
Filtration accuracy: 0.3mm or as request.
Motor reducer: Made in Germany, SEW Brand.
Electrical control mode : AC, three-phase, 380V/50Hz.
Pneumatic Drain valve: Flowx Brand.
Control model: Time, Fully automatic pressure difference, Manual.

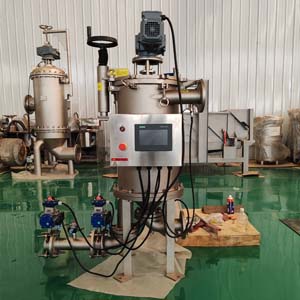

Description Of External Scraping Self-cleaning Filter
External scraper self-cleaning filter blends modern technology with simplicity to provide a versatile method of filtering your process fluids.
The filter can be set up for fully or semi- automated or manual operation.
Technical Parameters Of External Scraping Self-cleaning Filter
| Model | Filter Dia. | Filter Height | Thickness | Slot |
| HTW-219 | 250mm | 700mm | 3mm | Min.0.02mm |
| HTW-245 | 300mm | 1000mm | 4mm | Min.0.02mm |
| HTW-412 | 450mm | 1100mm | 6mm | Min.0.02mm |
| HTW-470 | 500mm | 1300mm | 6mm | Min.0.02mm |
| HTW-550 | 600mm | 1500mm | 6mm | Min.0.02mm |
Working Principle Of External Scraping Self-cleaning Filter
liquid enters the filter body from inlet and flows through the filter element from outside to inside. Impurity is collected on the external
surface of the wedge wire element. The reducer motor drives scraper blade to remove the impurity continuously. Cleaning takes place
without interruption to flow by the rotation of the element against fixed scraper blades. The impurity accumulated during rotation is
deposited into the bottom of the filter body from where it can be periodically discharged automatically via the drain outlet.
Ideal for processes that require continuous flow,HUATAO filters is also suitable for use on unmanned sites and with hazardous process fluids.
