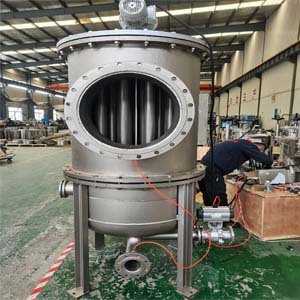

Automatic Back Flushing Filter

Specification

Filter material：SS304 or SS316L

Filtration precision：200um or as request

Filter Inner equipped 24Pcs wedge wire filter elements, SS316L;

Reducer: SEW brand, Power 0.25KW

Electronic control method:Three-phase exchange 380V/50Hz

Control method：time,pressure difference,Manual;

Siemens PLC touch control box;

Inquire

Click directly to send a message via WhatsApp

A^-A⁺

Description Inquire

Description Of Automatic Back Flushing Filter

Automatic back flushing filter has many filter elements inside,which can be used for high flow rate and high impurity liquid filtertion process.

It can remove solid partical from water or low viscosity liquid. The special back flushing arm design can clean the filter element one by one avoid

clogging.It increase the equipment running efficiency and extend the use life.

Technical Parameter Of Automatic Back Flushing Filter

Type	Filter dia.	Filter height	Thickness	Filter Area	Slot
HTF-400	450mm	1500mm	6mm	0.8	Min. 20microns
HTF-450	500mm	2000mm	6mm	0.9
HTF-550	600mm	2500mm	6mm	1.0
HTF-800	850mm	3000mm	6mm	2.0
HTF-900	950mm	3500mm	6mm	2.5
HTF-1200	1700mm	4000mm	6mm	3.0
HTF-1500	2000mm	4500mm	6mm	3.5

Technical Features & Advantages Of Automatic Back Flushing Filter

No disposable consumables Save filter media cost and environment cost.

Stainless steel structure:Variously materials, corrosion and rust prevention.

High-precision slot opening: Min. Slot 20 microns.

High automation degree: Which can work on-line continuously,no manual cleaning frequently
