Basket filter

Basket Filter

Specification

Filtering Area:0.45m2 or as per request

Suitable liquid: water and viscosity liquid, impurity content less than 1000ppm

Filter Element Type and Material: V-SLOT slotted filter element, 304 stainless steel

Filtration Accuracy: 400 mesh (or as per customer request )

Housing Material: SS304 or SS316 or Carbon Steel

Inquire

Click directly to send a message via WhatsApp

A^-A⁺

Description Inquire

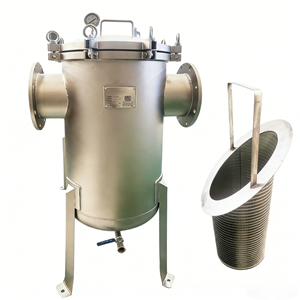

Description Of Basket Filter

Basket filters are used in oil or other liquid pipelines to filter out impurities in the pipeline. The basket filter mainly consists of a connecting

pipe, main pipe, filter basket, flange, flange cover, and fasteners.

Material: SS304, SS316, Carbon Steel

Technical Parameters Of Basket Filter

Model	Filter Diameter	Filter Height	Thickness	Filter Area
HTB-219	250mm	1000mm	3mm	0.2mm
HTB-273	300mm	1450mm	4mm	0.5mm
HTB-299	400mm	1600mm	4mm	0.6mm

Working Principle Of Basket Filter

When the liquid enters the filter basket through the main pipe, solid impurities are blocked inside the filter basket, while the clean fluid

passes through the filter basket and is discharged from the filter outlet. For cleaning, simply unscrew the plug at the bottom of the main pipe,

drain the fluid, remove the flange cover, clean the filter, and reassemble it. Therefore, it is easy to use and maintain.
